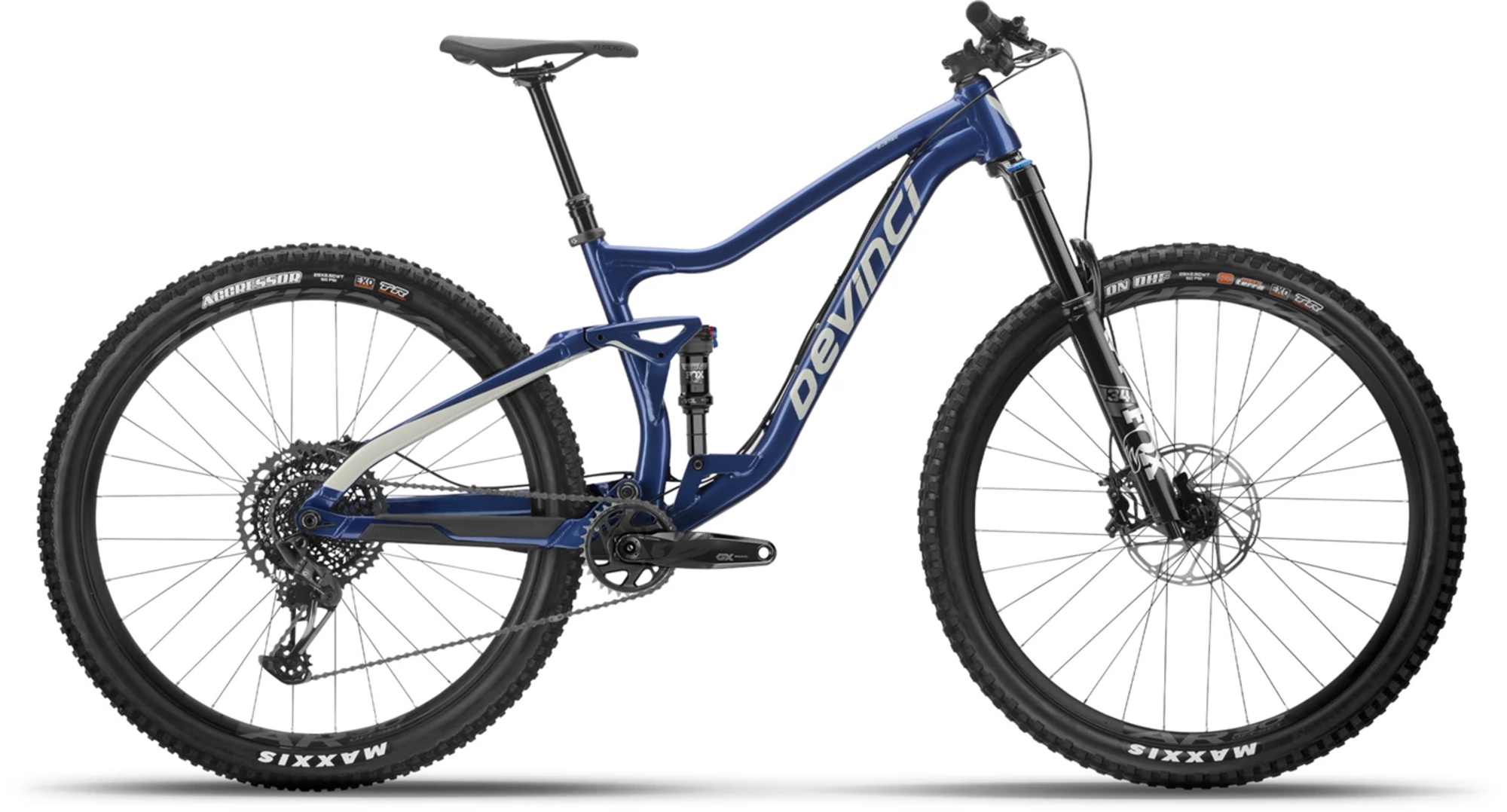

Devinci Django GX Fox34 12s
$3,499.99 - $3,999.99
$4,999.00
Details
Light, lively Split-Pivot Django brings unstoppable stoke to a tangle of trail types. This capable short-travel machine shines on climbs, while bringing adept handling to gnarled, technical turf. Superboost 157 rear spacing combined with 29x2.6 tire clearance accentuate its punchy, aggressive powers on rolling terrain. Relocated adjustable geo flip chips mean less moving parts and simple on-the-fly adjustability. And threaded BBs make for easy maintenance, while molded chainstay and downtube protection helps buck rocks and loose debris. Jump on the fun-hogging Django 29 today and find your happy place — everywhere you ride.
| Frame Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Geo Position | Low | Low | Low | Low | Low |
| A - ST (MM) | 380 | 400 | 430 | 465 | 500 |
| B - SA (DEG) | 77.6 | 77.6 | 77.4 | 77.3 | 77.1 |
| C - HA (DEG) | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| D - TT (MM) | 546 | 566 | 590 | 614 | 637 |
| E - REACH (MM) | 410 | 430 | 450 | 470 | 490 |
| F - CS (MM) | 435 | 435 | 435 | 440 | 445 |
| G - WB (MM) | 1144 | 1164 | 1188 | 1217 | 1246 |
| H - BBH (MM) | 333 | 333 | 333 | 333 | 333 |
| I - SOH (MM) | 730 | 735 | 736 | 762 | 785 |
| J - STACK (MM) | 618 | 618 | 627 | 636 | 645 |
| K - HT (MM) | 95 | 95 | 105 | 115 | 125 |
| RIDER HEIGHT (CM) | 147-160 | 157-170 | 168-180 | 178-187 | 185-193 |
| BBD (MM) | 41 | 41 | 41 | 41 | 41 |
| RAKE (MM) | 51 | 51 | 51 | 51 | 51 |
| TRAIL (MM) | 108 | 108 | 108 | 108 | 108 |
| ACTUAL SA (DEG) | 69.6 | 69.6 | 69.6 | 70 | 70.5 |
| GROSSEUR PNEU () | 29 X 2.5 | 29 X 2.5 | 29 X 2.5 | 29 X 2.5 | 29 X 2.5 |
| LONGUEUR FOURCHE (MM) | 551 | 551 | 551 | 551 | 551 |
| FC (MM) | 717 | 737 | 761 | 785 | 809 |
| Fox Transfer (MM) | 100 | 125 | 150 | 150 | 150 |
| RS Reverb (MM) | 100 | 125 | 150 | 170 | 170 |
Specs
| Pedals | Sold Separately |
|---|---|
| Fork | Fox 34 Performance Elite Grip2 140 | 44 Offset |
| Hubs | Factor XD601SB/A | 6bolts | TA 15x110mm |
| Rims | RaceFace AR30 | 30mm inner | TR |
| Stem | V2 Pro | B:35mm | L:40mm | 0° |
| Chain | SRAM GX Eagle | 12s |
| Frame | Aluminum Optimum G04 120mm |
| Tires |
Front: Maxxis Minion DHF | 29x2.5WT | 3C | Exo+ | TR | MaxxTerra Rear: Maxxis Minion DHRII | 29x2.4wt | 3C | Exo+ | TR | MaxxTerra |
| Brakes | SRAM G2 RS | 4 PIstons |
| Rotors | SRAM Centerline | 200mm/180mm |
| Saddle | SDG BELAIR 3.0 |
| Spokes | Sapim Stainless 14G w/Nylok |
| Headset | FSA Orbit | 1.5 | Zero Stack |
| Crankset | SRAM GX Eagle | DUB | 32T | SuperBoost 157 |
| Seatpost | SDG Tellis 31.6mm |
| Shifters | SRAM GX Eagle | 12s |
| Handlebars | RaceFace Aeffect R35 | B:35mm | R:20mm | W:780mm |
| Rear Shock | Fox Float DPS Performance Elite | 0.8VSpacer | 190x45 |
| Tape/Grips | Devinci Performance | w/lock-on |
| Bottom Bracket | SRAM DUB | BSA | 73mm |
| Rear Derailleur | SRAM GX Eagle | 12s |
| Cassette/Freewheel | SRAM XG1275 | 12s | 10-52T | XD |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Portal Blue / Medium / 29-inch | 883385226834 | FV23013331 | 210000004986 |
| Portal Blue / Large / 29-inch | 883385226827 | FV23013431 | 210000004987 |
