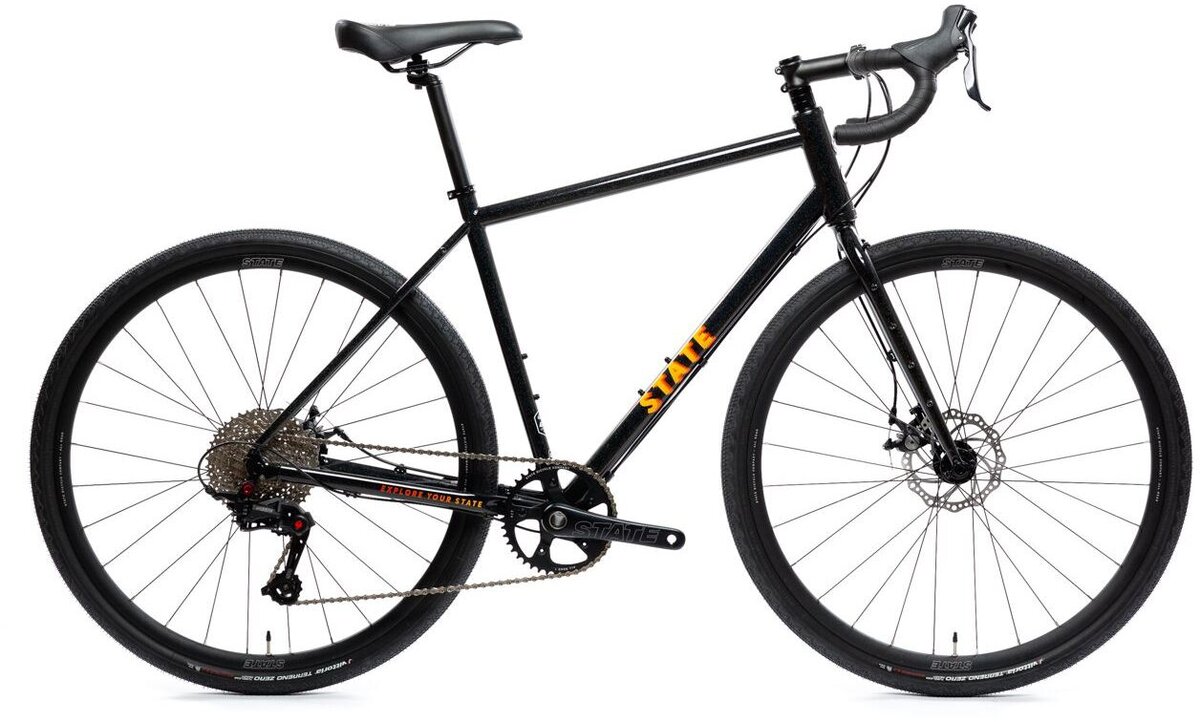

State Bicycle Co. 4130 All-Road

State Bicycle Co. 4130 All-Road
  • Color: Sonoran Tan
  • Color: Sonoran Tan
  • Color: Pigeon Gray
  • Color: Black Canyon
  • Color: Copper Brown
This item is currently not available.

Details

The 4130 All-Road offers the benefits of advanced gravel technology at an accessible price. It features a rugged 4130 Chromoly steel frame and fork with plenty of cargo mounts, choice thru-axle wheels (700c with "slick" tires or 650b with knobby tires), 11-speed drivetrain, and disc brakes. This is our most capable bike ever! Make it 2-bikes-in-1 by selecting "700c|650B" as your wheelset choice and you'll get two pairs of wheels, tires, tubes, rotors, and cassette for easy back-and-forth switching between 700c and 650B.

bike frame with labeled dimensions
Bike Sizes:
XSSML
A. Reach 359.8mm 373.7mm 371.5mm 385mm
B. Stack 560.7mm 581.6mm 602.5mm 621.5mm
C. Standover (700c / 650B) 743mm / 735mm 772mm / 764mm 798mm / 790mm 827mm / 819 mm
D. Effective Top tube 510mm 535mm 550mm 575mm
E. Head Tube Angle 70.5 71 71.5 71.5
F. Head Tube Length 125mm 145mm 165mm 185mm
G. Seat Tube Angle 75 74.5 73.5 73
H. Seat Tube Length 430mm 470mm 510mm 550mm
I. Bottom Bracket Height 268mm 268mm 268mm 268mm
J. Bottom Bracket Drop 75mm 75mm 75mm 75mm
K. Fork Rake/Offset 50mm 50mm 50mm 50mm
M. Wheelbase 997.1mm 1013.1mm 1054.1mm 1062.9mm
O. Chainstay Length 450mm 450mm 450mm 450mm

Specs

Frame 4130 Chromoly Steel; Tire Clearance Frame (650B / 700c) : 53c / 45c
Fork 4130 Chromoly Steel; 1 1/8 threadless steerer
Wheels Aluminum Wheel Set (650b / 700c)
Rims Rim Depth: 24mm; Rim Width: 19mm (internal) / 24mm (external); tubeless capable; 28H double wall
Hubs Sealed Bearing; Front: 12x100 THRU-AXLE; Rear: 12x142 THRU-AXLE; 6- Bolt
Spokes 14G Stainless Steel
Tires 700c: Vittoria Terreno Zero 38c (Tubeless)
650B: Vittoria Barzo 2.1"
Bottom Bracket Hollow Axle BSA 68mm
Crankset State Bicycle Co. All-Road 1; Forged 7075 Aluminum; Crank Arm Length: XS/S: 170mm, M/L 175mm
Chainrings State Bicycle Co. All-Road 1; Forged 6061 Aluminum; 42T; 110 BCD
Shifters State Bicycle Co. All-Road 1 1x11
Cassette/Freewheel SBC 11-42T 11 speed
Chain YBN 11 Speed
Brakes Promax DSK-300R Flat Mount (Mechanical)
Handlebars State Bicyce Co. All Road Bars; Aluminum 18-deg; W500/420mm; OS31.8 Stem Black
Stem Alloy 3D Forged; Clamp Diameter: 31.8mm; Length: XS/S: 90mm, M: 100mm, L: 110mm; Rise: +/- 7 degree
Headset FSA ZS-4D 1 1/8" threadless
Seatpost Alloy; Diameter: 27.2mm; Length: 350mm
Saddle State All-Road; Polyurethane; Steel Rails
Pedals Platform Pedal

* Subject to change without notice.

Part Numbers

Option UPC MPN
Copper Brown / 47cm / 650B 796201638981 43-ARCB-650-047
